Features
-
Plastic thermoforming machine is a combination of mechanical, electrical and pneumatic components.
-
The whole system controlled by a micro PLC, which can be operated in man interface.
-
It combines the material auto feeding, heating, forming and cutting in one process.
-
It has three operation models: Manual, Semi-Automatic and Full Automatic.
Application Area:
It is used for forming BOPD, HIPS, PP, PVC and PET plastic sheets, which can widely used to produce all kinds of plastic boxes, containers, dishes, trays, bowls, lids and other plastic wares such as food Boxes, cake boxes, fast-food boxes, supermarket trays, ice-cream cups, chocolate package boxes…etc.
ISC-660C thermoforming machine has two functions:
1. Making round cups
2. Making square cups
Paramters
|

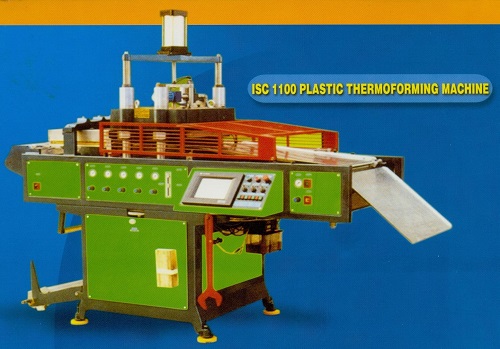

ISC-1100 |
|
Maximum Forming Area |
510x570mm |
|
Maximum Forming Depth |
100mm |
|
Thickness Range of Sheet |
0.15-1mm |
|
Maximum Sheet Roller Diameter |
710mm |
|
Maximum Cutting Length |
6350mm |
|
Air Pressure |
0.7Mpa |
|
Water Consumption |
10Liter/Min (15-20 C) |
|
Air Consumption |
1200Liters/Min |
|
Manufacturing Speed |
600-1200mould/Min |
|
Power (Three-Phase, Four-Wire) |
3-N AC380V+15V |
|
Pre-heater Power |
4KW |
|
Mould Plate Heating Power |
4KW |
|
Heating Plate Power |
10KW |
|
Maximum Sheet Width |
650mm |
|
Weight |
2500Kg |
|
Dimension (LxWxH) |
2750x1450x2150(mm) |
|

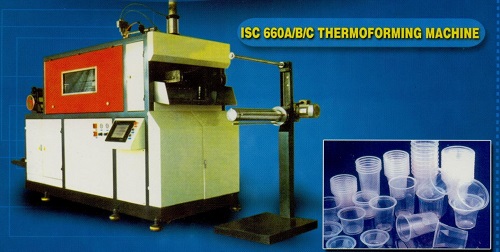

ISC660A/B/C |
|
Maximum Forming Area |
250x580mm |
250x580mm |
(Round Shape): 250x580mm (Square Shape): 250x580mm |
|
Maximum Forming Depth |
120mm |
120mm |
120mm |
|
Maximum width range of sheet |
300-660mm |
300-660mm |
300-660mm |
|
Thickness Range of Sheet |
0.2-2.5mm |
0.2-2.5mm |
0.2-2.5mm |
|
Maximum Sheet Roller Diameter |
710mm |
710mm |
710mm |
|
Air Pressure |
0.7Mpa |
0.7Mpa |
0.7Mpa |
|
Water Consumption |
10Liter/Min |
10Liter/Min |
10Liter/Min |
|
Air Consumption |
2000Liters/Min |
2000Liters/Min |
2000Liters/Min |
|
Manufacturing Speed |
35mould/Min |
35mould/Min |
35mould/Min |
|
Power (Three-Phase, Four-Wire) |
AC380V+15V |
AC380V+15V |
AC380V+15V |
|
Heating Motor Power |
38KW |
38KW |
38KW |
|
Main Motor Power |
4KW |
4KW |
4KW |
|
Feeding Motor Power |
2.2KW |
2.2KW |
2.2KW |
|
Rewinding Motor Power |
0.55KW |
0.55KW |
0.55KW |
|
Weight |
4000Kg |
4000Kg |
4000Kg |
|
Main Machine (LxWxH) |
3300x1650x2250(mm) |
3300x1650x2250(mm) |
3300x1650x2250(mm) |
|
Rewinder (LxWxH) |
1250x800x1900(mm) |
1250x800x1900(mm) |
1250x800x1900(mm) |
|
Cutting Device (LxWxH) |
------------------------------- |
------------------------------- |
1100x1350x1350(mm) |
