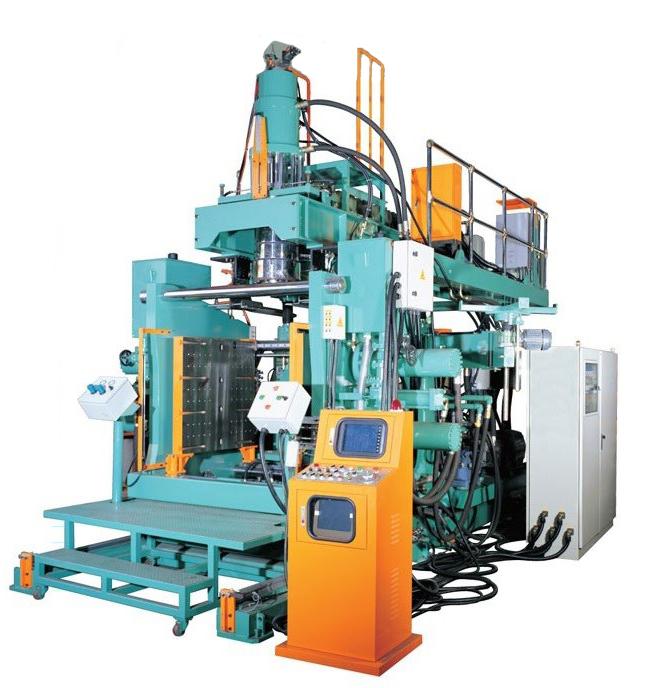

ISL- TS & ISL-TN Series: B- Large Containers Blowing Machines
Features
Paramters
Video & Images
Features
Clamping system with 4 shafts for EN series and 3 shafts for ES series.
Finished product ejects by hydraulic device for EN series and mechanical device for ES series.
High torque hydraulic motor drive for extrusion system.
Logic hydraulic circuit system / differential circuit for clamping system.
Double injection cylinders accumulator head design.
Optional:
Bottom blow and Parison stretch.
Gearbox drive extruder directly.
Servo Parison control system.
Paramters
MAIN SPECIFICATION
Model
ISL-TS SERIES
ISL
-TN SERIES
1000E
1200E
1000E
1200E
Production Possibilities(cc)
15-40
40-80
15-40
40-80
ACCUMULATOR HEAD
Accumulstor Capacity(kg)
4
6
8
10
4
6
8
10
Die Diaameter(max-min-mm)
60-260
80-370
60-260
80-370
CLAMPING SYSTEM
Clamping Force (ton)
28
40
43
60
Clamping Strocke (max-min-mm)
1000-300
1200-320
1000-300
1200-320
Mould Diameter
900x690
1200x825
1100x690
1500x690
EXTRUDER SYSTEM
Screw Diameter (mm)
90
100
90
100
Screw L/D Ratio
20:1
Maximum Exrusion Capacity(kg/h)
140
180
140
180
Drive Motor (kw)
2000
3000
2000
3000
