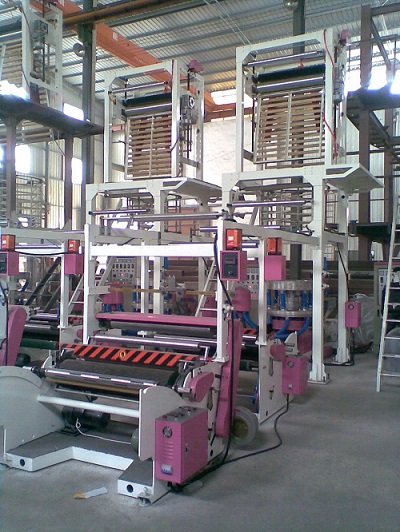

ISL/HL-EZ SERIES
Features
Paramters
Video & Images
Features
Screw & Barrel from special steel SCM4 and SCM645 thermally processed with oil.
The Head covered internally with a layer of hard chrome.
All motor variable speed (VS, DC)
Cooling Circle for Gear Box oil, and automatic oiling for the internal moving parts.
All Electric Parts are German, French and Japanese origin.
DESCRIPTION:
The blown Film Machine can produce the low-density polyethylene, high-density polythene and linearity low-density polythene films.
Those films are widely used in the food, general merchandisers, daily uses, chemical industry, textiles, shopping bags and industrial packing.
OPTIONAL EQUIPMENT?
Auto Loader
Embossing Roller
CORONA
Die Rotary Device?
Air Compressor?
Manual Mechanics Screen Changer
Paramters
MODEL
ISL/HL-45EZ
ISL/HL-50EZ
ISL/HL-55EZ
ISL/HL-65EZ
Suitable Material
HDPE LDPE LLDPE
Film Width (mm)
200-600
300-800
400-1000
600-1300
Film Thickness (HD)
0.009-0.08
0.009-0.08
0.009-0.08
0.01-0.08
0.02-0.15
0.02-0.15
0.02-0.15
0.02-0.15
Max. Extrusion Output (HD)
50kg/hr
60kg/hr
75kg/hr
105kg/hr
60kg/hr
80kg/hr
100kg/hr
125kg/hr
EXTRUDER
Screw diameter (mm)
φ45
φ50
φ55
φ65
Screw L/D Length
28:1
Screw Material
SACM-645/38 CRMOALA
Cylinder Material
SACM-645/38 CRMOALA
Cylinder Cooling
370w×2
370w×2
550w×2
550w×3
Driving Motor (Kw)
15
18.5
22
37
Temperature controller
3
3
3
4
Average Power Consume (Kw)
18
26
31
45
TYPE OF DIE
Die Size (HD)
60/80
80/100
100/125
125/150
150
180
250
300
Temperature controller
3
Air Ring
1
Air Blower (Kw)
2.2
2.0
3
5.5
Center Steady Stick
2(HDPE)
TAKE-UP UNIT
Pinch Roller (Dia. Width) mm
φ165×650
φ165×850
φ 165×1100
φ165×1400
Height Adjustable size
700mm
Take-up Speed (m/min)
10-80
10-80
10-80
10-80
Take-up Motor (Kw)
0.75
1.5
1.5
1.5
WINDING UNIT
Type
SURFACE FRICTION TYPE
Winding Motor (N.m)
5
10
10
16
Winding Speed (m/min)
10-80
10-80
10-80
10-80
Cover Dimension (m)
5.0×2.0×4.5
5.0×2.2×5.0
5.5×2.5×5.5
5.8×2.8×6.5
