Paramters

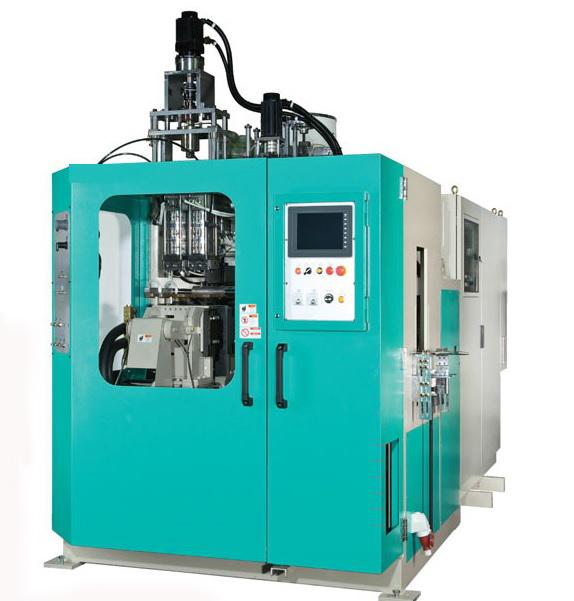

ISL- TS Series: A- Small and medium containers Blowing Machine Specification:
|
MAIN SPECIFICATION |
Model |
ISL -T 330 |
ISL-T 410 |
ISL-T550 |
ISL-T700 |
ISL-T800 |
|
Production Possibilities(cc) |
40-1000 |
50-5000 |
100-5000 |
2-10(LITER) |
|
Product Diameter (mm) |
20-110 |
20-150 |
30-220 |
40-280 |
|
Station |
Single |
Single, Double |
|
ACCUMULATOR HEAD |
Head Cavity (Extrusion) |
1 |
|
1 |
|
1 |
|
1 |
|
1 |
|
|
2 |
100 |
2 |
125 |
2 |
150 |
2 |
200 |
2 |
200 |
|
|
|
4 |
85 |
4 |
100 |
|
|
|
|
|
Accumulstor Capacity(kg) |
|
|
|
|
1 |
2 |
2 |
3 |
2 |
3 |
|
CLAMPING SYSTEM |
Clamping Force (ton) |
2.6 |
3.2 |
4.7 |
13.3 |
13.3 |
|
Clamping Strocke (max-min-mm) |
330-80 |
410-80 |
550-100 |
700-160 |
800-160 |
|
Mould Diameter |
320x280 |
380x300 |
410x330 |
570x540 |
670x540 |
|
EXTRUDER SYSTEM |
Screw Diameter (mm) |
45 |
55 |
65 |
75 |
80 |
|
Screw L/D Ratio |
22:1 |
|
Maximum Exrusion Capacity(kg/h) |
20 |
30 |
45 |
70 |
90 |
|
Drive Motor (kw) |
6.5 |
7.5 |
11.3 |
15 |
22.5 |
ISL- TN Series: A- Small and medium containers Blowing Machine Specification:
|
Model |
JN-370 |
JN-490 |
JN-640 |
|
Production Possibilities(cc) |
40-2000 |
100-5000 |
2-10(LITER) |
|
Product Diameter (mm) |
20-150 |
30-220 |
40-280 |
|
Station |
Single, Double |
|
Head |
|
Cavity & Center Distance |
1 |
X |
1 |
X |
1 |
X |
|
|
2 |
125 |
2 |
150 |
2 |
250 |
|
|
3 |
100 |
3 |
125 |
3 |
150 |
|
|
4 |
85 |
4 |
100 |
4 |
125 |
|
CLAMPING SYSTEM |
|
Clamping Force (ton) |
5 |
10 |
18 |
|
Clamping Strocke (max-min-mm) |
370-100 |
490-200 |
640-220 |
|
Mould Diameter |
370x360 |
460x420 |
460x560 |
|
EXTRUDER SYSTEM |
|
Screw Diameter (mm) |
55 |
65 |
65 |
75 |
80 |
90 |
|
Screw L/D Ratio |
24:1 |
|
Maximum Exrusion Capacity(kg/h) |
30 |
45 |
45 |
70 |
90 |
140 |
|
Drive Motor (kw) |
7.5 |
11.3 |
11.3 |
15 |
22.5 |
37.5 |
